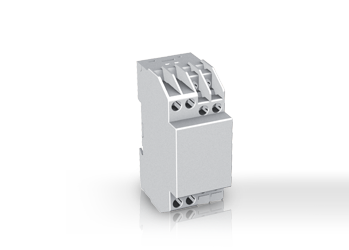

DOLD 用于樓宇自動化控制柜KU 4000

Widths from 17,5 to 140 mm
With up to 64 connection terminals
With captive plus-minus-terminal screws or with cage clamps
Safe connection of max. 2 connection wires of different cross section
Terminal blocks machine solderable on PCBs
Available with BUS-pluggable connections, e.g. KNX, RJ45
For DIN-rail or surface screw mounting
Available with 50 A high current terminals
Available with removable front plate

立即咨詢下一個產(chǎn)品

描述
參數(shù)
設備圖片

Description	max. number of terminals	width [mm]	height [mm]	depth [mm]	Type
Enclosures for consumer units - Enclosure Series KU4000 to DIN 43 880

Insulated Enclosure for installation in distribution cabinets or surface mounting	4	8.8	89	58	KU 4085
Insulated Enclosure for installation in distribution cabinets or surface mounting	8	17.5	87	58	KU 4086
Insulated Enclosure for installation in distribution cabinets or surface mounting	8	17.5	90	58	KU 4087
Insulated Enclosure for installation in distribution cabinets or surface mounting	16	35	90	58	KU 4088
Insulated Enclosure for installation in distribution cabinets or surface mounting	24	52.5	90	58	KU 4084
Insulated Enclosure for installation in distribution cabinets or surface mounting	64	140	90	59	KU 4091
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	8	17.5	90	58	KU 4037
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	16	35	90	58	KU 4038
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	32	70	90	58	KU 4039
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	32	70	90	74.5	KU 4052
Insulated Enclosure for installation in distribution cabinets or surface mounting, with plug-in relay-module-carrier	32	70	90	74.5	KU 4059
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	48	105	90	59	KU 4040
Insulated Enclosure for installation in distribution cabinets or surface mounting, with cage clamp terminals	64	140	90	59	KU 4041
Insulated Enclosure for installation in distribution cabinets or surface mounting, with plug-in relay-module-carrier with cage clamp terminals	64	140	90	74.5	KU 4054
Insulated Enclosure for installation in distribution cabinets or surface mounting	12	35	90	58	KU 4088
Insulated Enclosure for installation in distribution cabinets or surface mounting	24	140	90	59	KU 4091
Insulated Enclosure for installation in distribution cabinets or surface mounting	28	70	90	58	KU 4089
Insulated Enclosure for installation in distribution cabinets or surface mounting	32	105	90	59	KU 4090
Insulated Enclosure for installation in distribution cabinets or surface mounting, with high current terminals and flat terminals	32	70	90	58	KU 4088
Insulated Enclosure for installation in distribution cabinets or surface mounting, with high current terminals and flat terminals	32	70	90	58	KU 4089
Insulated Enclosure for installation in distribution cabinets or surface mounting, with high current terminals and flat terminals	48	105	90	59	KU 4090
Insulated Enclosure for installation in distribution cabinets or surface mounting, with plug-in relay-module-carrier	64	140	90	74.5	KU 4061
