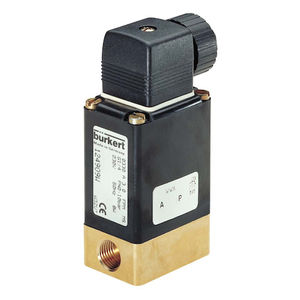

Burkert寶德直動式兩位兩通或兩位三通轉動銜鐵電磁閥類型 0330 / 貨號 18276
  • Burkert寶德直動式兩位兩通或兩位三通轉動銜鐵電磁閥類型 0330 / 貨號 18276
  • Burkert寶德直動式兩位兩通或兩位三通轉動銜鐵電磁閥類型 0330 / 貨號 18276
  • Burkert寶德直動式兩位兩通或兩位三通轉動銜鐵電磁閥類型 0330 / 貨號 18276
  • Burkert寶德直動式兩位兩通或兩位三通轉動銜鐵電磁閥類型 0330 / 貨號 18276

Burkert寶德直動式兩位兩通或兩位三通轉動銜鐵電磁閥類型 0330 / 貨號 18276

0330型兩通不銹鋼電磁閥G1/4

  • 直動式介質隔離電磁閥，最大通徑 DN 5

  • 免維護轉動銜鐵技術

  • 防震線圈

  • 適用于腐蝕性堿液和酸液

  • 手動開關結構堅固、使用方便


  • 描述
  • 參數
  • 設備圖片

技術屬性

名稱
參數
單位
Type0330
Operationdirect-acting
Actuator typePivot
Main valve operating principleGlobe valve
Switch functionon/off
Media separationYes
Valve functionA - normally closed - inlet port 1 (P/NC)
Fluidic port connection number2
Valve function number of switching positions2
Valve function manual actuationYes
Valve function manual actuation typeKey button
Valve function manual actuation materialPA (Polyamide)
Valve function manual actuation stopYes
FlowAbove seat
Nominal pressure min0bar
Nominal pressure max (liquid)5bar
Main valve orifice 1 (P) (mm)4mm
Main valve orifice 1 (inch)5/32 inch
Kv value (water)0,17m3/h
QNn value (gas)180l/min
Main valve wetted materialStainless steel
Port connection 1 typeInner thread
Port connection 1 thread typeG
Port connection 1 thread marking1/4
Port connection 2 typeInner thread
Port connection 2 thread typeG
Port connection 2 thread marking1/4
Valve seat materialStainless steel
Seat seal material categoryElastomer
Seat seal materialFKM (Fluor rubber)
Seat seal material Shore hardness70
Sealing toward outside materialFKM (Fluor rubber)
Temperature environment max55°C
Temperature medium min0°C
Temperature medium max90°C
Temperature surface max155°C
Voltage / rated voltage24V
Voltage / rated voltage24V
Voltage tolerance negative10%
Voltage tolerance positive10%
AC voltageNo
DC voltageYes
Battery voltageYes
Rated power DC11W
Reduced power DC11W
Rated power consumption8W
Electrical connection sortPlug pattern form A according to DIN EN 175301-803
Electrical connection number of contacts2 + Grounding conductor
Cable plug in deliveryenclosed
Cable plug art. no. - type00132445 - 2508
Electrical connection positiontop
Electrical connection polarityIrrelevant
Electrical connection materialBrass
Protection type (IP max. with suitable connector)IP65
Coil typeblock bolted
Coil insulation material (encasement)Epoxy
Coil wiring overvoltage protectionwithout
Coil wiring rectifierNo
Coil wiring polarity protectionNo
Coil wiring polarity recovery diodeNo
Thermal insulation class of the actuatorH
Nominal operation/Duty cycle100%
Switch time open min10ms
Switch time open max.20ms
Switch time close min10ms
Switch time close max.20ms
Valve setting opening timeNo
Valve setting closing timeNo
Back-pressure-resistant versionNo
Vacuum versionNo
Analysis versionNo
Oil burner valveNo
Steam versionNo
Low-noise versionNo
Main valve with integrated screenNo
Installation length46mm
Mounting typeMetric screws
Valve constructionValve complete
重量0,460000kg
